The Steinel IS 2360 DE ECO is a recessed 360° PIR ceiling sensor that switches lights on when people enter an area and off again when they leave. It detects across a diameter of up to 8 m, typically at a 2.5 m mounting height, which is approximately 4 m radial. It switches a total load of up to 1000 W and suits LED drivers and conventional loads. The time delay is adjustable from approximately 8 seconds to 35 minutes. The dusk setting is adjustable from approximately 2 to 2000 lux. It is rated IP54. The body measures Ø 78 × 89 mm. It connects with a standard 3-wire supply. It is white and carries a 5 year warranty.
Key Features
-

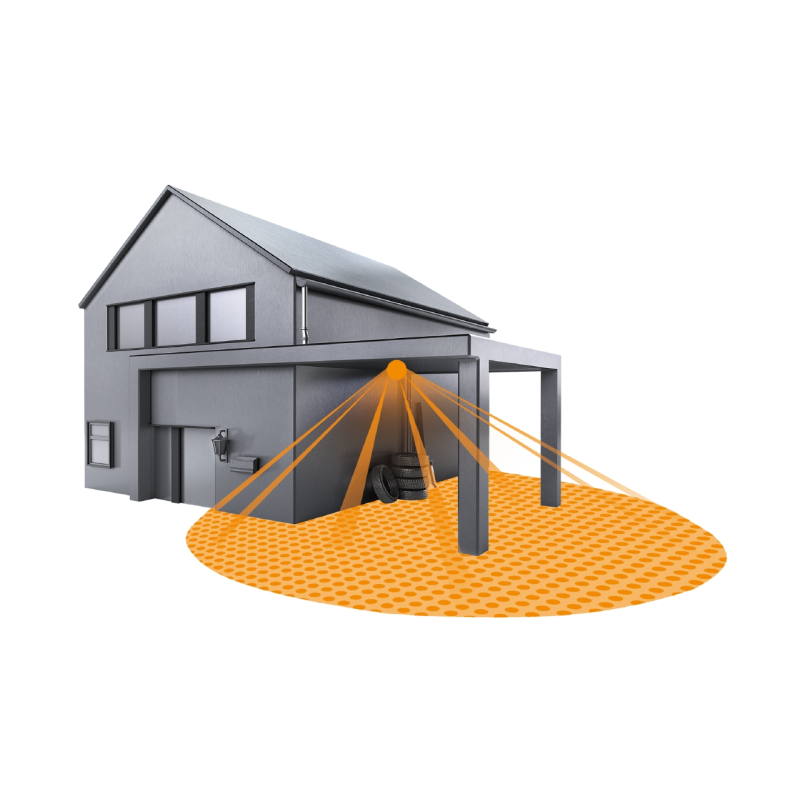

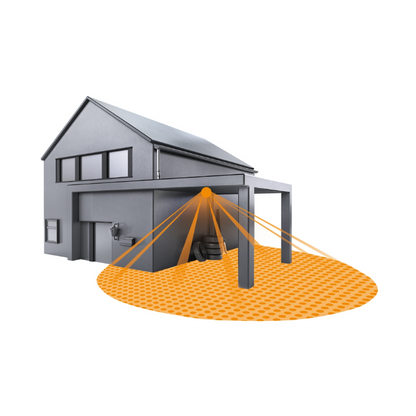

360° detection up to Ø 8 m tangential, approximately 4 m radial, at a typical 2.5 m mounting height.
-

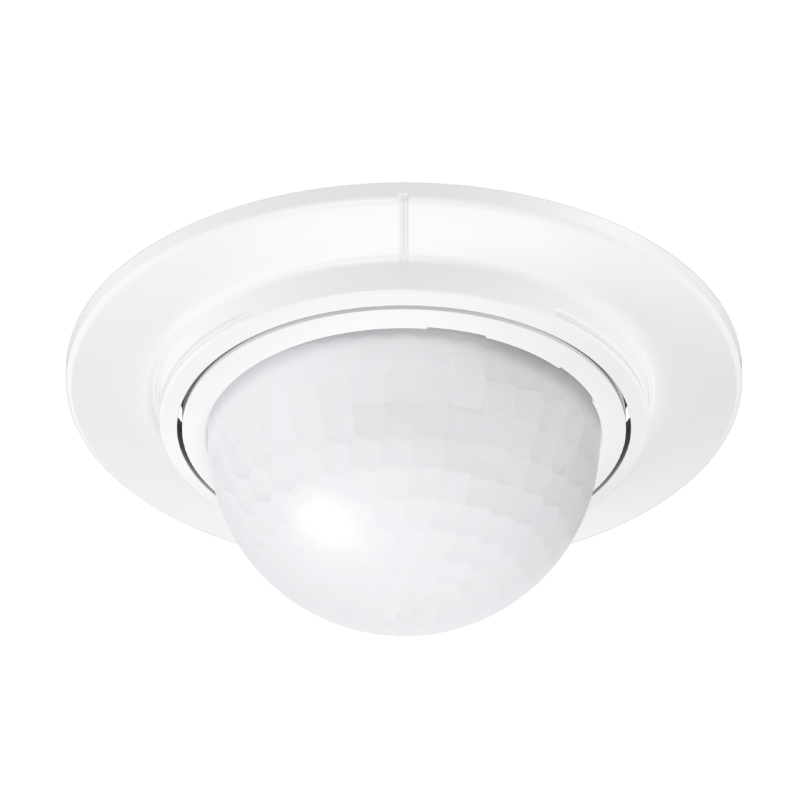

Recessed ceiling design in white, with a dome lens.
-
Up to 1000 W load for LED drivers and conventional lighting.
-
Adjustable time delay from approximately 8 seconds to 35 minutes.
-
Adjustable dusk setting from approximately 2 to 2000 lux.
-
IP54 rated protected against dust and splashing water.
-
Potentiometer controls for time and lux, set once at installation.
-

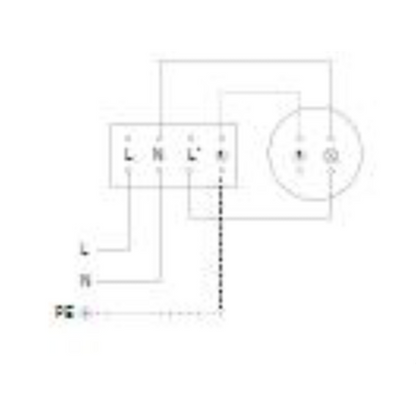

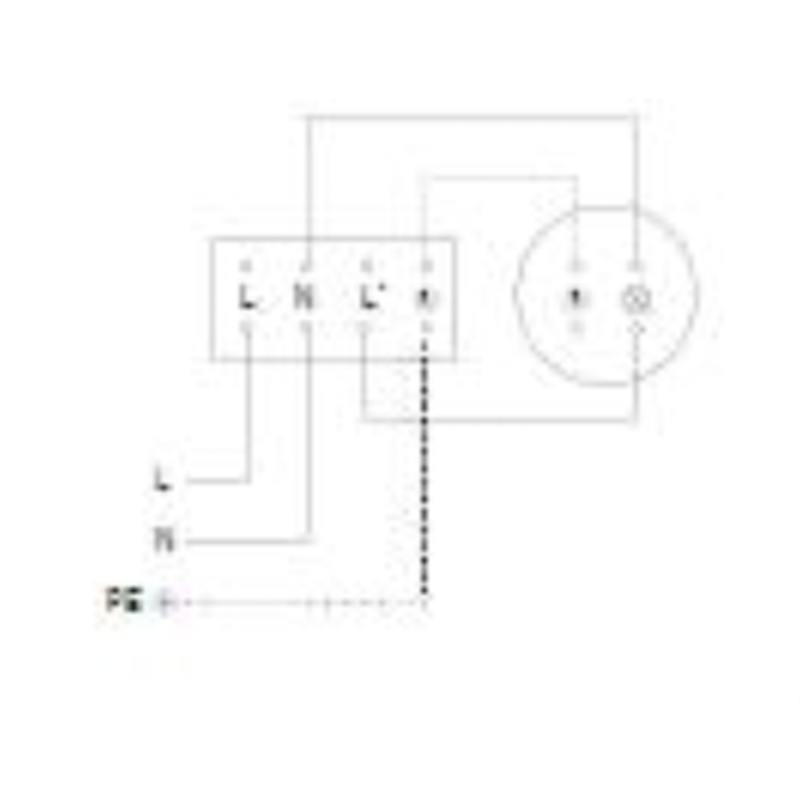

3-wire connection live, neutral and switched live.
-
Steinel Professional Line with a 5 year manufacturer's warranty.
Specifications
| Brand |
Steinel |
| Model |
IS 2360 DE ECO 8 m (IS2360DEECO) |
| Mounting |
Recessed, ceiling |
| Detection angle |
360° |
| Detection range |
Up to 8 m tangential, approximately 4 m radial, typical at 2.5 m mounting height |
| Maximum load |
1000 W |
| Time setting |
Approximately 8 seconds to 35 minutes |
| Twilight setting |
Approximately 2 to 2000 lux |
| IP rating |
IP54 |
| Body size |
Ø 78 × 89 mm |
| Connection |
3-wire: L, N, switched live |
| Colour |
White |
| Warranty |
5 years |
Where to Use It
- Entrances and porches.
- Corridors and stairwells.
- Utility rooms, toilets and washrooms.
- Store rooms.

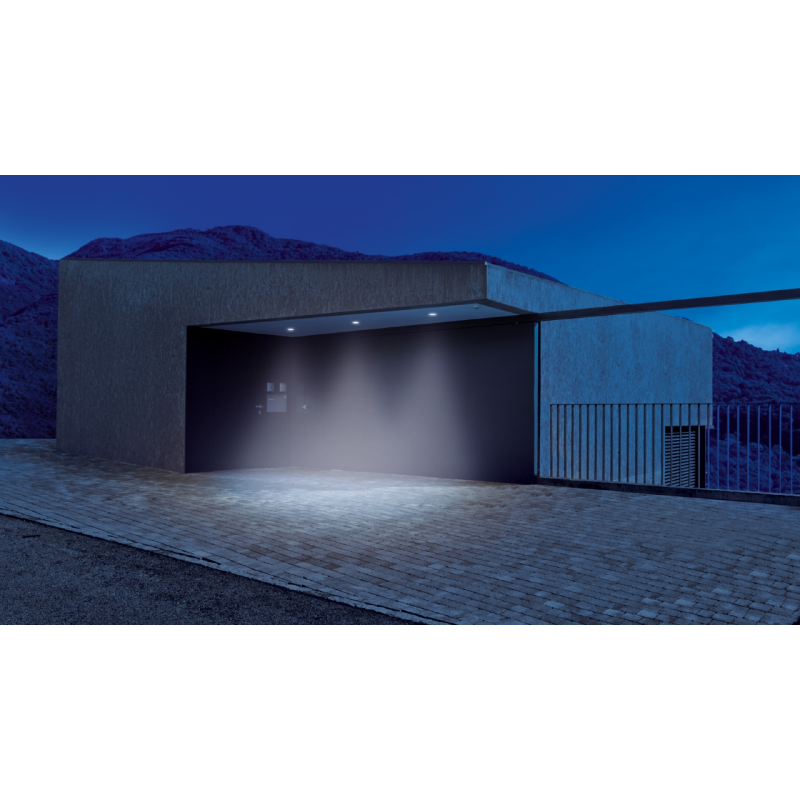

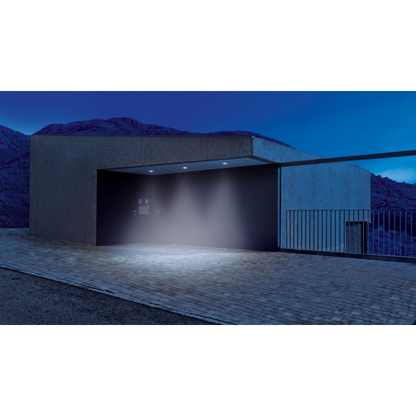

- Garages and carports.
- Small offices.
Frequently Asked Questions
Q: How big an area does the Steinel IS 2360 DE ECO cover?
A: Up to 8 m in diameter at a typical 2.5 m mounting height, which is approximately 4 m radial, across 360°.
Q: Is the Steinel IS 2360 DE ECO surface or recessed?
A: Recessed. It fits into the ceiling, with a body size of Ø 78 × 89 mm.
Q: Will it switch LED lights?
A: Yes. It handles up to 1000 W total load and suits LED drivers as well as conventional loads.
Q: How long do the lights stay on?
A: The time delay is adjustable from approximately 8 seconds to 35 minutes. The dusk setting runs from approximately 2 to 2000 lux.
Q: Can it be used in a porch or carport?
A: Yes. It is rated IP54, protected against dust and splashing water, and porches, garages and carports are typical locations.
Q: How is the Steinel IS 2360 DE ECO wired?
A: With a standard 3-wire connection: live, neutral and switched live. In Ireland, fixed mains wiring should be done by a registered electrician.
