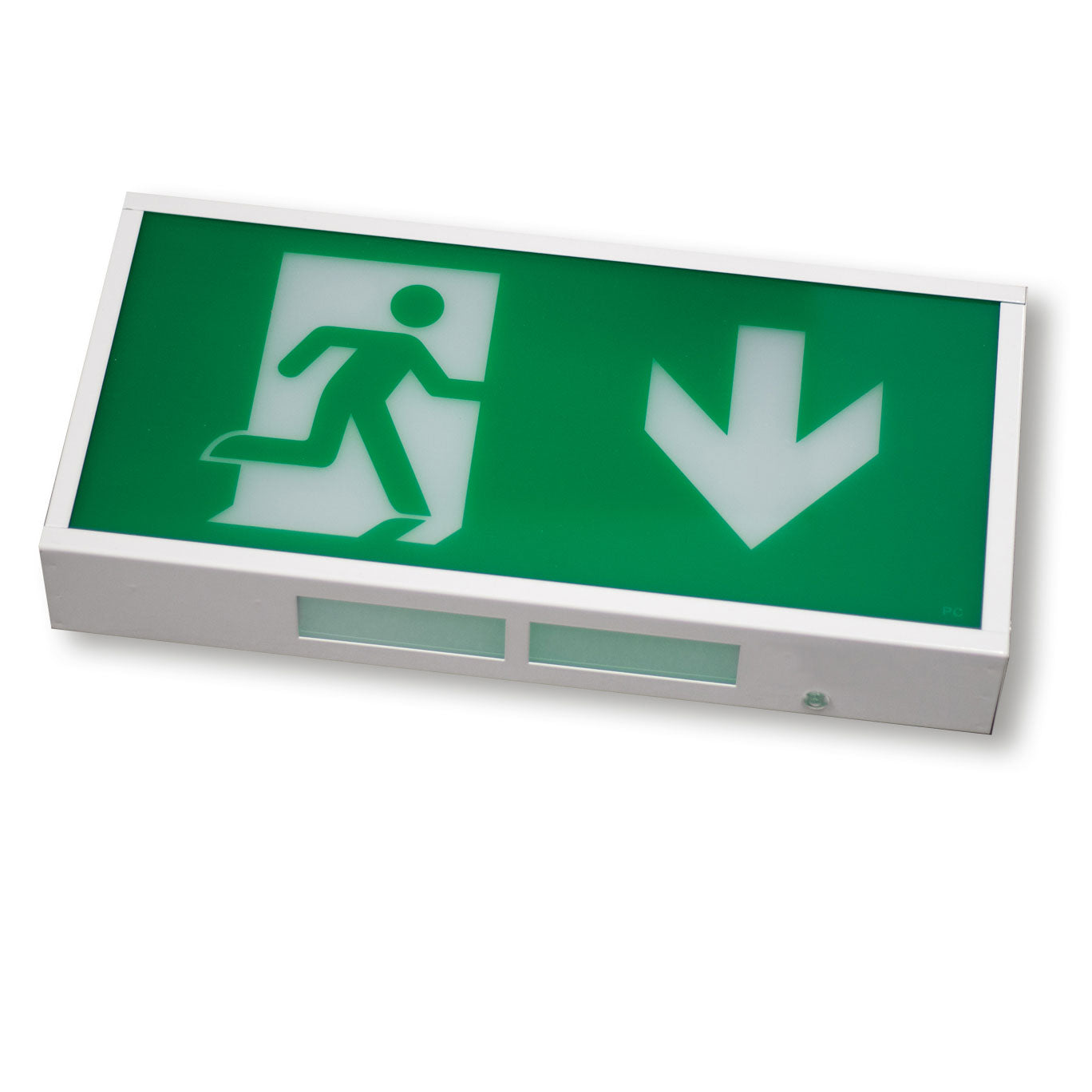

This is a 4W LED emergency exit box sign for indoor escape routes. It gives over 50lm in mains mode and over 30lm in emergency mode at 6500K daylight white. It can run maintained or non-maintained. The LiFePO4 battery is 1500mAh at 3.2V and gives up to 3 hours of emergency lighting. The sign has a 30m viewing distance. The panel is acrylic and an ISO down arrow legend is included. It is rated IP20 for indoor use. It meets BS EN 60598-2-22:2014+A1:2020, BS EN 62034 and ISO 7010.
Key Features
-
4W LED giving over 50lm in mains mode and over 30lm in emergency mode.
-
6500K daylight white output.
-
LiFePO4 battery, 1500mAh at 3.2V, for up to 3 hours of emergency lighting.
-
30m viewing distance.
-
Maintained or non-maintained operation.
-
Acrylic exit panel with an ISO down arrow legend included. Other directional legends are sold separately.
-
Standards: BS EN 60598-2-22:2014+A1:2020, BS EN 62034 and ISO 7010.
-
Warranty: 5 years on the product and 3 years on the battery.
Specifications
| Type |
LED emergency exit box sign |
| Power |
4W LED |
| Light output |
Over 50lm mains, over 30lm emergency |
| Colour temperature |
6500K daylight white |
| Battery |
LiFePO4, 1500mAh, 3.2V |
| Emergency duration |
Up to 3 hours |
| Viewing distance |
Up to 30m |
| Operation |
Maintained or non-maintained |
| IP rating |
IP20, indoor use |
| Panel |
Acrylic |
| Legend included |
ISO down arrow |
| Standards |
BS EN 60598-2-22, BS EN 62034, ISO 7010 |
| Warranty |
5 years product, 3 years battery |
Where to Use It
- Offices, retail units and hospitality venues.
- Warehouses, factories and distribution centres, indoors.
- Schools, hospitals, community centres and transport hubs.
- New build and retrofit projects.
Frequently Asked Questions
Q: How far away can this LED exit sign be seen?
A: Up to 30m.
Q: How long does the exit sign stay lit in a power cut?
A: Up to 3 hours. It uses a 1500mAh 3.2V LiFePO4 battery.
Q: Is the exit box sign maintained or non-maintained?
A: Both. It can be set to run maintained, lit at all times, or non-maintained, lit only on mains failure.
Q: Which standards does the exit sign meet?
A: BS EN 60598-2-22:2014+A1:2020, BS EN 62034 and ISO 7010.
Q: Which legend comes with the exit sign?
A: An ISO down arrow legend is included. Other directional legends are sold separately.
Q: Can it be used outdoors?
A: No. It is rated IP20, which is for dry indoor locations only.
Q: Do I need an electrician to fit an emergency exit sign?
A: Yes. It is wired to the mains, so in Ireland it should be installed by a registered electrician.
