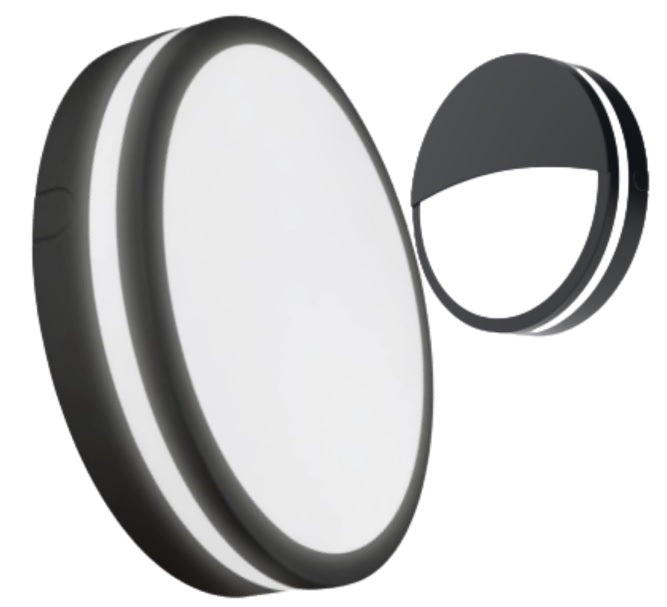

The Orion LED CCT Multi-Watt Circular Bulkhead (SKU ORMB/CCT/R) is a circular LED bulkhead for residential, commercial and outdoor walls and ceilings. The wattage is selectable on site between 9W, 14W and 18W. The colour temperature is selectable between 3000K warm white, 4000K cool white and 6000K daylight. The listed output is 950 lumens with a 110° beam angle. It is IP54 rated for indoor and outdoor use. It runs on 240V. The body is black polycarbonate, 271 mm in diameter and 92 mm deep. An optional eyelid directs light downward to cut glare and light spill. It is emergency and microwave sensor ready, with plug and play installation. Rated life is 25,000 hours, with a 2-year warranty.
Key Features
-
Multi-watt selectable: 9W, 14W or 18W, chosen on site.
-
Adjustable CCT: 3000K, 4000K or 6000K, so one fitting covers different jobs.
-
950 lumens listed output with a wide 110° beam angle.
-
Optional eyelid for downward light and glare control at entrances, walkways, balconies and perimeters.
-
IP54 rated for indoor and outdoor use.
- Emergency and microwave sensor ready.
- Plug and play installation.
-
Durable polycarbonate body in black.
-
25,000 hours rated life and a 2-year warranty.
Specifications
| Brand |
Orion |
| SKU |
ORMB/CCT/R |
| Lumens |
950 lm |
| Wattage |
9W, 14W or 18W (selectable) |
| Colour temperature |
3000K, 4000K or 6000K (selectable) |
| Beam angle |
110° |
| Voltage |
240V |
| IP rating |
IP54 |
| CRI |
Above 80 |
| Material |
Polycarbonate (PC) |
| Colour |
Black |
| Dimensions |
271 mm diameter x 92 mm deep |
| Eyelid |
Optional, for directional light |
| Rated life |
25,000 hours |
| Warranty |
2 years |
Where to Use It
- Apartment blocks and communal areas.
- Corridors and stairwells.
- External walls and entrances.
- Plant rooms and service areas.
- Commercial and industrial buildings.
- Residential outdoor lighting.
Frequently Asked Questions
Q: Can the Orion bulkhead be used outdoors?
A: Yes. It is IP54 rated, protected against dust and splashing water, and listed for indoor and outdoor use on external walls and entrances.
Q: Can I change the wattage and colour on site?
A: Yes. Choose 9W, 14W or 18W and 3000K, 4000K or 6000K during installation, so one fitting covers several jobs.
Q: What does the eyelid option do?
A: It directs the light downward. That cuts glare and light spill at entrances, walkways, balconies and perimeter lighting.
Q: Is the eyelid included with the Orion bulkhead?
A: It is listed as an optional accessory. Call 01 401 9907 or email sales@shamrockelectrical.ie to confirm what comes with your order.
Q: Is the Orion bulkhead suitable for emergency lighting or a sensor?
A: It is listed as emergency and microwave sensor ready. Ask us which emergency or sensor version suits your job before ordering.
Q: How big is the Orion bulkhead?
A: 271 mm in diameter and 92 mm deep. The body is black polycarbonate.
Q: Where can I buy an LED bulkhead light in Ireland?
A: From Shamrock Electrical at shamrockelectrical.ie, with free delivery to every county in the Republic of Ireland from the first euro. You can also order for collection from our shop in Greenogue Business Park, Rathcoole, Co. Dublin, usually ready in 2 to 4 days.
