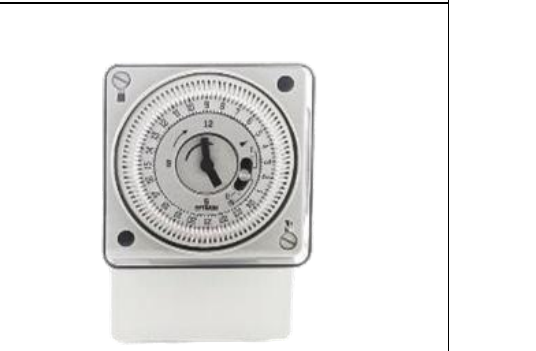

The Optimum OP-TS211.1 is a single-channel 24 hour quartz time switch running a daily programme on 15 minute tappet intervals. Its main feature is a 150 hour running reserve: if the supply is interrupted, the programme and time are held for over six days, so you're not resetting the clock after every power cut.
It mounts on a surface, flush or on 35 mm DIN rail, which makes it suitable for consumer units, control panels and surface installations alike.
Key features
- Single channel, daily programme
- 15 minute tappet intervals
- Quartz movement with 150 hour running reserve
- Battery charging duration: 70 hours
- Volt-free SPDT contacts
- Surface, flush and DIN rail mounting
Technical specification
| Switching capacity |
16 A resistive, 8 A inductive |
| Incandescent lamp load |
1300 W |
| LED lighting |
suitable up to 100 W |
| Contacts |
volt-free SPDT |
| Programme |
24 hour, single channel, 15 minute tappet intervals |
| Running reserve |
150 hours, quartz movement |
| Battery charging duration |
70 hours |
| Mounting |
surface, flush or 35 mm DIN rail |
Installation notes
Not suitable for discharge lighting without a contactor. For LED loads above 100 W, or for discharge lighting, switch the load through a suitably rated contactor. Installation should be carried out by a qualified electrician in accordance with I.S. 10101.
Frequently Asked Questions
Q: Where can I buy a DIN rail time switch in Ireland?
A: The Optimum OP-TS211.1 24 hour quartz time switch is available from Shamrock Electrical at shamrockelectrical.ie, with free delivery to every county in the Republic of Ireland from the first euro. You can also order for collection from our shop in Greenogue Business Park, Rathcoole, Co. Dublin, usually ready in 2 to 4 days.
Q: What does the 150 hour reserve actually do?
A: If the power goes off, the quartz movement keeps the time and programme running for over six days. You come back to a timer still on schedule instead of a flashing clock that needs resetting.
Q: Can it go in a consumer unit?
A: Yes. It mounts on 35 mm DIN rail, and also surface or flush, so the same unit suits a consumer unit, a control panel or a wall.
Q: Can I use it to switch LED lighting?
A: Yes, up to 100 W of LED directly. Above that, or for any discharge lighting, the load must go through a suitably rated contactor.
Q: Do I need an electrician to install it?
A: Yes. It wires into a fixed circuit, so it should be installed by a registered electrician in accordance with I.S. 10101.
Q: Do you deliver across Ireland?
A: Yes. We deliver to every county in the Republic of Ireland, and you can also order for collection from our Rathcoole shop, usually ready in 2 to 4 days.
