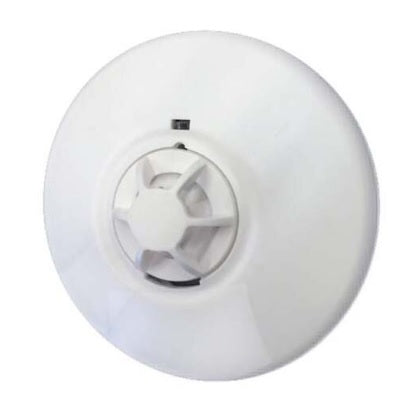

The Evolec Heat Alarm is a mains powered heat detector with a 9V back-up battery. It detects fire by heat rather than smoke, so it suits kitchens, garages, lofts and other places where a smoke alarm would give false alarms. It runs on 240V. The 9V battery is included and keeps the alarm working during a power cut. Up to 20 units can be interconnected, so they all sound together. The sounder is 85dB. It has a test and hush button, a low or missing battery warning and an end of life alert. It measures 145 × 55mm, is made from white polycarbonate, is rated IP20 and is CE certified, with a 2 year warranty.
Key Features
-
Heat detection for rooms where smoke alarms cause false alarms.
-
240V mains powered with a 9V back-up battery included.
-
Interconnects with up to 20 units for whole property coverage.
-
85dB alarm for an early, loud warning.
-
Test and hush button for routine checks and silencing.
-
Battery and end of life warnings for low or missing battery and alarm end of life.
-
CE certified with a 2 year warranty.
Specifications
| Brand |
Evolec |
| Product code |
DS239 |
| Type |
Heat alarm, interconnectable |
| Dimensions |
145 × 55mm |
| Input voltage |
240V |
| Back-up |
9V battery (included) |
| Interconnection |
Up to 20 units |
| Alarm volume |
85dB |
| IP rating |
IP20 |
| Material |
PC (polycarbonate) |
| Finish |
White |
| Certification |
CE certified |
| Warranty |
2 years |
Where to Use It
- Kitchens.
- Garages.
- Lofts.
- Utility and boiler rooms.
- Rental properties and homes that need interconnected fire detection.
Frequently Asked Questions
Q: What is the difference between a heat alarm and a smoke alarm?
A: A heat alarm reacts to a rise in temperature, not smoke. That makes it suited to kitchens and garages, where cooking fumes or exhaust would set off a smoke alarm.
Q: Does the Evolec heat alarm work in a power cut?
A: Yes. It runs on 240V mains with a 9V back-up battery, which is included.
Q: How many Evolec heat alarms can be interconnected?
A: Up to 20 units, so when one alarm sounds they all sound.
Q: How loud is the alarm?
A: 85dB.
Q: Do I need an electrician to fit a mains heat alarm?
A: Yes. It is a 240V mains alarm, so in Ireland it should be installed by a registered electrician.
Q: Can it go in a bathroom or outdoors?
A: No. It is rated IP20, which gives no protection against water, so it is for dry indoor areas only.
Q: Where can I buy a mains heat alarm in Ireland?
A: From Shamrock Electrical at shamrockelectrical.ie, with free delivery to every county in the Republic of Ireland from the first euro. You can also order for collection from our shop in Greenogue Business Park, Rathcoole, Co. Dublin, usually ready in 2 to 4 days.
