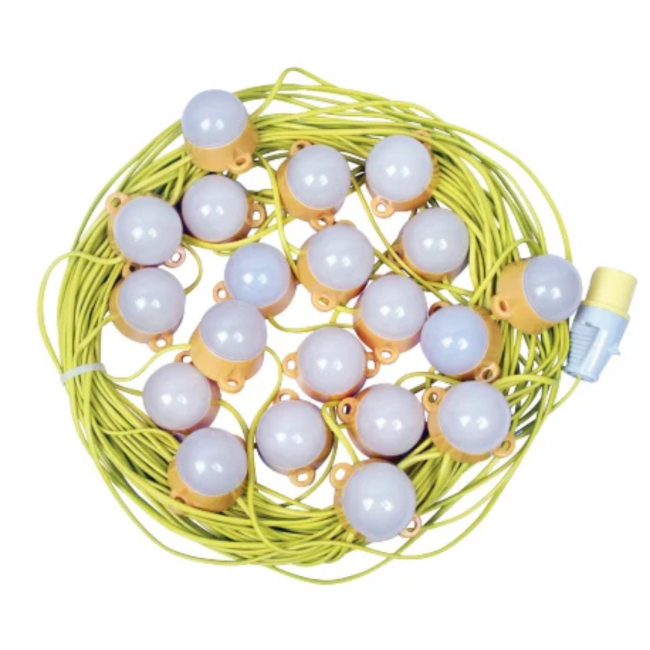

Fifty metres of bright, low energy site lighting for building sites, scaffolds, stairwells, tunnels and plant rooms. Twenty sealed 5W LED heads, one every 2.5 metres, each give 425 lumens of cool white light, and the whole run draws only 100W. Two harnesses link end to end for 100 metres from one supply. It comes fitted with a yellow 16A 110V plug, ready for your site transformer. Delivered free from the first euro.
Key Features
50 metres with 20 LED heads spaced every 2.5 metres.
Only 5W per head, 100W for the whole run.

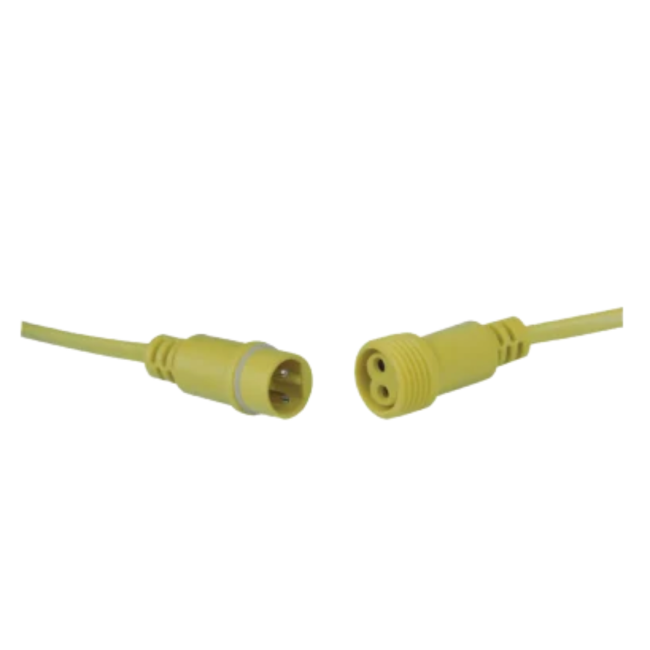

Connectable to 100 metres (200W) from one supply.
110V with a 16A 2P+E plug for a standard site transformer.
IP44 rated heads for damp and dusty site conditions.
Cool white 4000K, CRI above 80 for clear task lighting.
Specifications
Brand
Evolec
Product code
H50/110
Length
50 metres
LED heads
20, spaced every 2.5 metres
Wattage
20 x 5W (100W total)
Light output
425 lumens per head
LED type
SMD2835
Colour temperature
4000K cool white
CRI
Above 80
Voltage
110V
Plug
16A 2P+E 110V (yellow)
Connectable
Up to 100 metres (200W)
IP rating
IP44
Head size
75 x 60mm
Frequently Asked Questions
Q: Does it plug into a normal socket? A: No. It runs on 110V, the safer voltage used on Irish and UK building sites, and is fitted with a yellow 16A 110V plug. Power it from a 110V site transformer.
Q: How many harnesses can I connect together? A: Two, for a continuous 100 metre run drawing 200W in total. Check that your transformer is rated for the total load of everything plugged into it.
Q: Are the lights included? A: Yes. The 20 LED heads are fitted to the cable, so it is ready to hang and switch on. There are no lamps to buy or change.
Q: Can it be used outdoors? A: The heads are rated IP44, which protects them against splashing water from any direction, so the harness suits scaffolds, external stairs and covered outdoor work areas. Keep plug connections off the ground and out of standing water.
Q: How bright is it? A: Each head gives 425 lumens of 4000K cool white light, about the same as an old 40W bulb, every 2.5 metres along the run. That is 8,500 lumens across the 50 metres for only 100W.
Q: Do you offer trade pricing on site lighting? A: Yes. Trade pricing is not shown online. Call us on 01 401 9907 or email sales@shamrockelectrical.ie with the quantities you need and we will come back with your rate.
Q: Where can I buy 110V site lighting in Ireland? A: From Shamrock Electrical at shamrockelectrical.ie. We are an Irish owned supplier in Greenogue Business Park, Rathcoole, Co. Dublin, just off the N7 and well positioned for the M50. Delivery is free to every county in the Republic of Ireland from the first euro, and you can also collect from the store.
