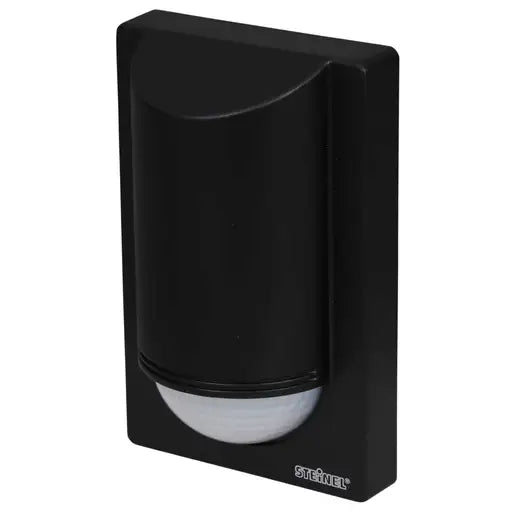

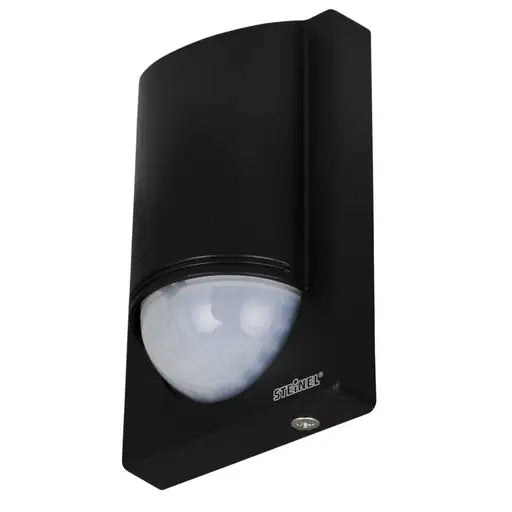

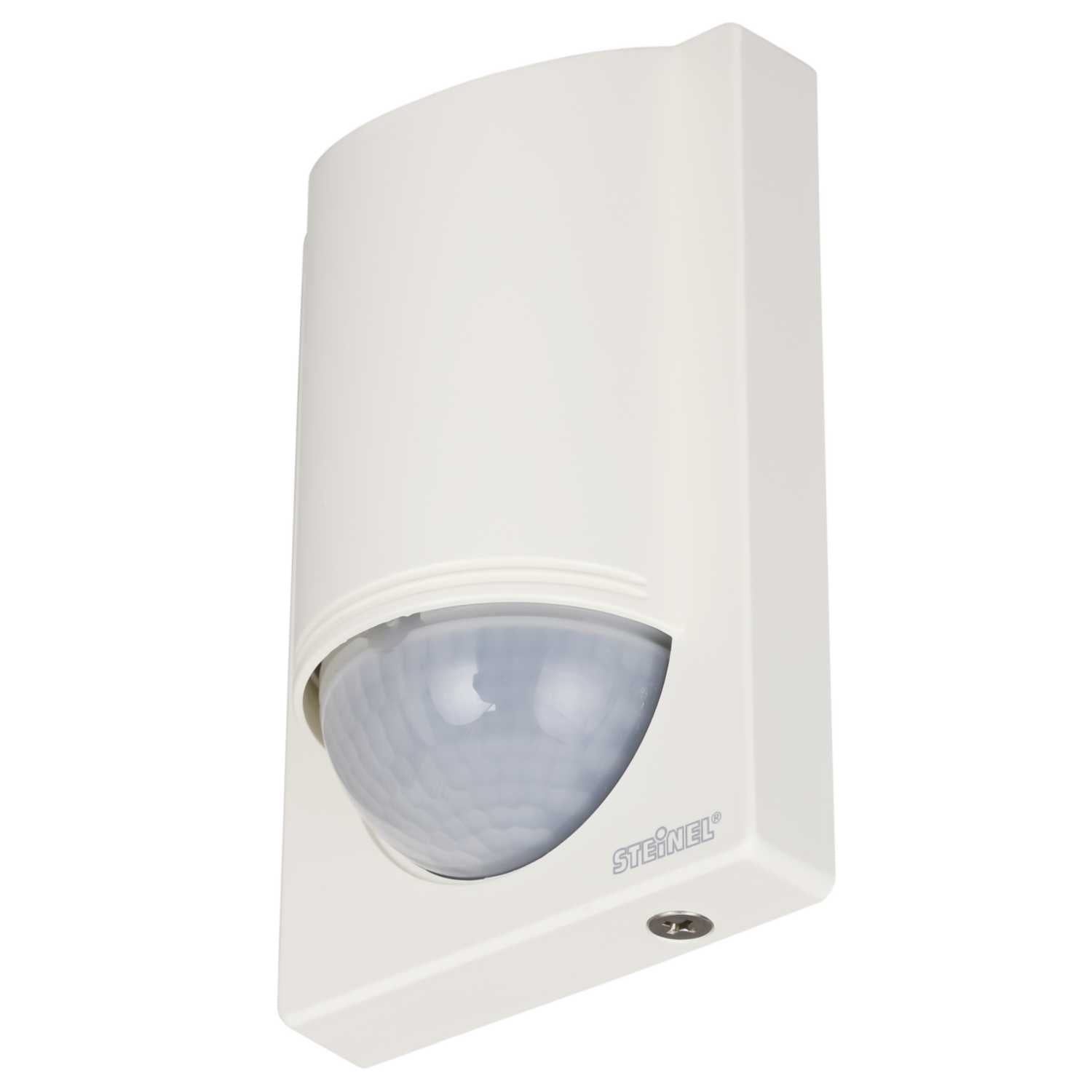

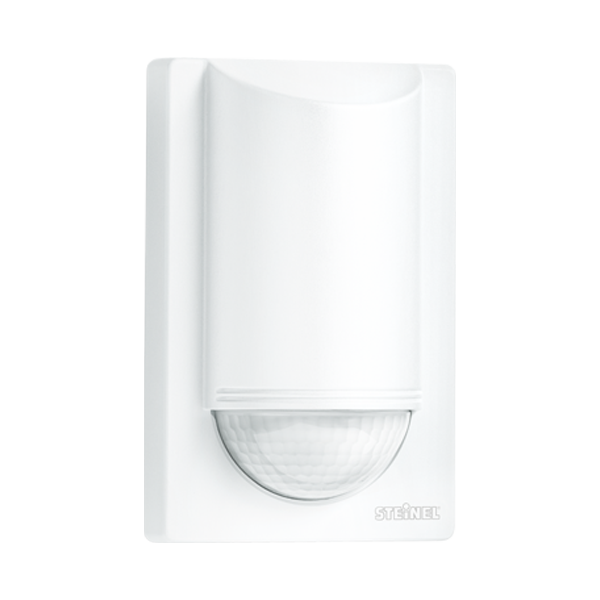

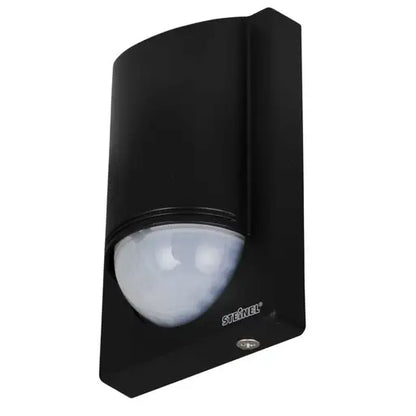

The Steinel IS 2180 ECO is a wall mounted outdoor PIR motion sensor that switches lighting on only when it detects movement. It has a 180° detection angle and a reach of up to 12 m. It switches a total load of up to 2000 W, including up to 350 W of LED lighting. The light-on time is adjustable from 10 seconds to 15 minutes. The twilight threshold is adjustable from 2 to 2000 lux. It is rated IP54 for outdoor use. It measures approximately 55 × 78 × 120 mm. It is part of the Steinel Professional Line and carries a 5 year warranty. It comes in white or black.
Key Features
-
180° detection with up to 12 m reach for paths, driveways and entrances.
-
Up to 2000 W switching load including up to 350 W of LED fittings.
-
Adjustable time from 10 seconds to 15 minutes.
-
Adjustable twilight threshold from 2 to 2000 lux.
-
IP54 rated protected against dust and splashing water for outdoor walls.
-
Swivelling sensor head and masking to avoid unwanted triggers from roads or neighbouring property.
-
Generous terminal space and clear markings for quicker wiring.
-
Steinel Professional Line with a 5 year warranty.
Specifications
| Brand |
Steinel |
| Model |
IS 2180 ECO |
| Sensor type |
Passive infrared (PIR) |
| Detection angle |
180° |
| Reach |
Up to 12 m |
| Maximum load |
2000 W total, maximum 350 W LED |
| Time setting |
10 seconds to 15 minutes |
| Twilight setting |
2 to 2000 lux |
| IP rating |
IP54 |
| Approximate size |
55 × 78 × 120 mm |
| Mounting |
Wall |
| Colours |
White (IS2180WHITE), black (IS2180) |
| Warranty |
5 years |
Where to Use It
- Front doors and porches.
- Driveways and parking bays.
- Side passages and garden paths.
- Bin areas.
- Small commercial entrances and loading doors.
Frequently Asked Questions
Q: What is the range of the Steinel IS 2180 ECO?
A: Up to 12 m, across a 180° detection angle.
Q: Will the Steinel IS 2180 ECO work with LED lights?
A: Yes. It switches up to 350 W of LED lighting, within a total load of up to 2000 W.
Q: Is the Steinel IS 2180 ECO suitable for outdoor use?
A: Yes. It is rated IP54, which means it is protected against dust and splashing water from any direction.
Q: How long do the lights stay on after movement?
A: Between 10 seconds and 15 minutes, set on the sensor. The twilight threshold is adjustable from 2 to 2000 lux.
Q: Can I stop it picking up cars on the road?
A: Yes. The sensor head swivels and the detection zone can be masked to cut out areas you do not want covered.
Q: What warranty does the Steinel IS 2180 ECO have?
A: 5 years. It is part of the Steinel Professional Line.
Q: Do I need an electrician to fit it?
A: Yes. It is wired into the outdoor lighting circuit. In Ireland, fixed mains wiring should be done by a registered electrician.
