This is a kit of 10 LED ground lights (SKU E1030-WH) for decking, steps, patios, garden paths and driveways. Each light runs on 12V DC low voltage and uses 0.6W. The body is stainless steel and PC. They are IP67 rated waterproof and walk-over safe up to 100kg. Each light has an outer diameter of approx. 30mm, needs a cut-out of approx. 20mm and is approx. 26mm deep. Each light comes with a 1m pre-wired cable, and a driver is included for connection. They can also be fitted indoors in tile, laminate and stone floors.
Key Features
-
10 lights in one kit, with a driver and pre-wired cables.
-
12V DC low voltage, 0.6W per light.
-
IP67 waterproof for Irish weather and outdoor floors.
-
Walk-over safe up to 100kg.
-
Stainless steel finish with a PC body.
-
Small cut-out, approx. 20mm, for a near invisible fitting.
Specifications
| SKU |
E1030-WH |
| Quantity |
10 lights |
| Voltage |
12V DC |
| Power |
0.6W per light |
| Material |
Stainless steel and PC |
| IP rating |
IP67 waterproof |
| Outer diameter |
Approx. 30mm |
| Cut-out size |
Approx. 20mm |
| Depth |
Approx. 26mm |
| Load |
Walk-over safe, up to 100kg |
| Cable |
1m pre-wired cable per light |
| Driver |
Included |

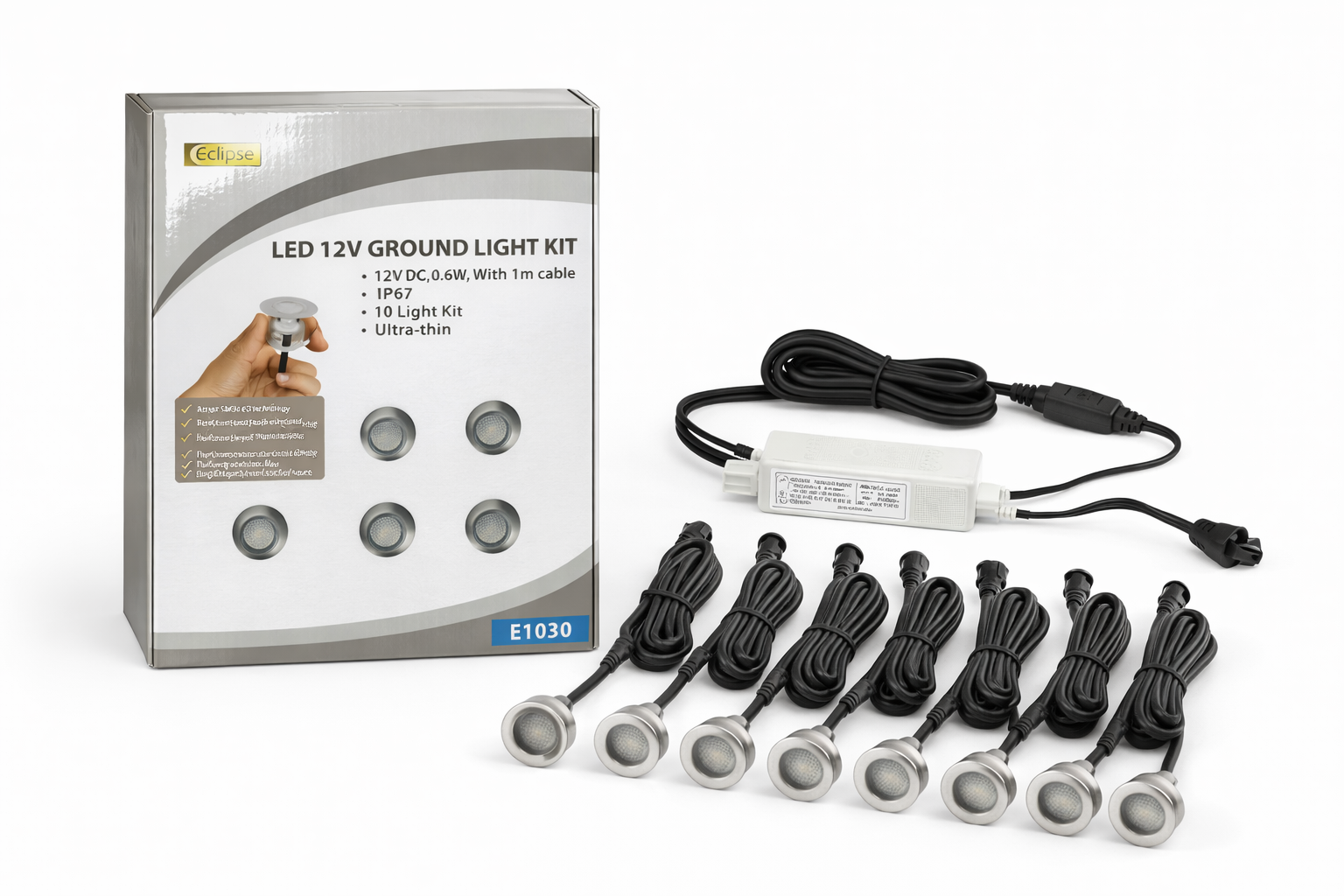

What Is in the Box
- 10 x LED ground lights.
- Pre-wired cables, 1m per light.
- Driver for connection.
Where to Use It
- Decking and patios.
- Steps and stairways, to light edges and reduce trips.
- Garden paths and borders.
- Driveway edges.
- Indoor tile, laminate and stone floors.
Frequently Asked Questions
Q: Can you walk on these LED decking lights?
A: Yes. They are walk-over safe up to 100kg.
Q: Are the 12V decking lights waterproof?
A: Yes. They are IP67 rated, which means they are dust tight and protected against temporary immersion in water.
Q: What size hole do the decking lights need?
A: Approx. 20mm. Each light has an outer diameter of approx. 30mm and is approx. 26mm deep.
Q: What is in the box?
A: 10 LED ground lights, each with a 1m pre-wired cable, and a driver for connection.
Q: How much power do the decking lights use?
A: 0.6W per light, so 6W for all ten. They run on 12V DC from the included driver.
Q: Do I need an electrician to install 12V decking lights?
A: Not for the lights themselves. The lights and cables run at 12V DC low voltage from the driver; if the driver is hard wired to the mains rather than plugged in, that connection should be made by a registered electrician.
Q: Where can I buy LED decking lights in Ireland?
A: From Shamrock Electrical at shamrockelectrical.ie, with free delivery to every county in the Republic of Ireland from the first euro. You can also collect from our store in Greenogue Business Park, Rathcoole, Co. Dublin.
Every order ships with free delivery from the very first euro, with no minimum spend and no threshold to reach. New customers take 10 percent off a first order. Trade pricing is not shown online, so if you are buying for a job or a contract, call us on 01 401 9907 or email sales@shamrockelectrical.ie for your rate. We are an Irish owned electrical supplier based in Greenogue Business Park, Rathcoole, just off the N7 and well positioned for the M50.
